Channel Magnet Assemblies
Overview

Adams Magnetic Products offers high-performance channel magnet assemblies, designed to provide exceptional holding strength on one large surface. These magnets are ideal for various industrial and consumer applications.

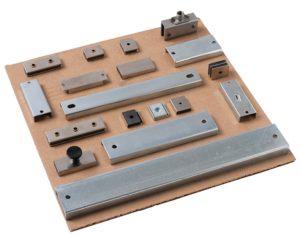

What are Channel Magnet Assemblies?

Channel magnets consist of a strong ceramic or rubber magnet set into a plated steel channel, equipped with holes, loops, or threaded nuts for versatile mounting options.

Advantages

  • Enhanced Holding Strength: Up to 32 times stronger than individual ceramic magnets.
  • Versatile Mounting: Multiple mounting options with holes, loops, or threaded nuts.
  • Customizable: Available in various colors and packaging options to meet specific requirements.

Features

  • Material Options: Made with ceramic or rubber magnets.
  • Durability: Plated steel channel enhances durability and corrosion resistance.
  • Flexible Applications: Customizable dimensions and configurations available.

Applications

Channel magnet assemblies are ideal for:
  • Door latches
  • Vehicle license plate holders
  • Sign and banner holders
  • Blueprint holders

Specifications

Adams supplies the following channel magnet assemblies from stock, with dimensions listed in inches. We can also make custom channel magnet assemblies to meet your exact specifications.

Contact us at 800-747-7543 if you don’t see what you’re looking for in this brief listing.

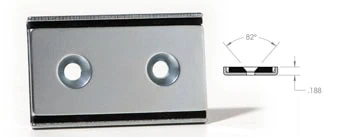

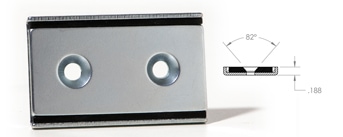

Low Profile Neo Channels

Low Profile Neo Channels

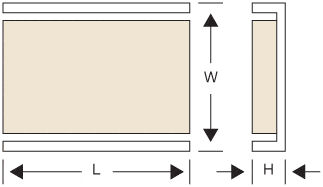

Width Height Length Pull lbs Mounting Finish Magnet Item # Matching Rubber Boot
0.750 0.188 2.000 80 2 Ctr holes for #8 Flathead Clear Zinc 65CN0007 69R0003
1.250 0.188 2.000 92 2 Ctr holes for #8 Flathead Clear Zinc 65CN0008 69R0002

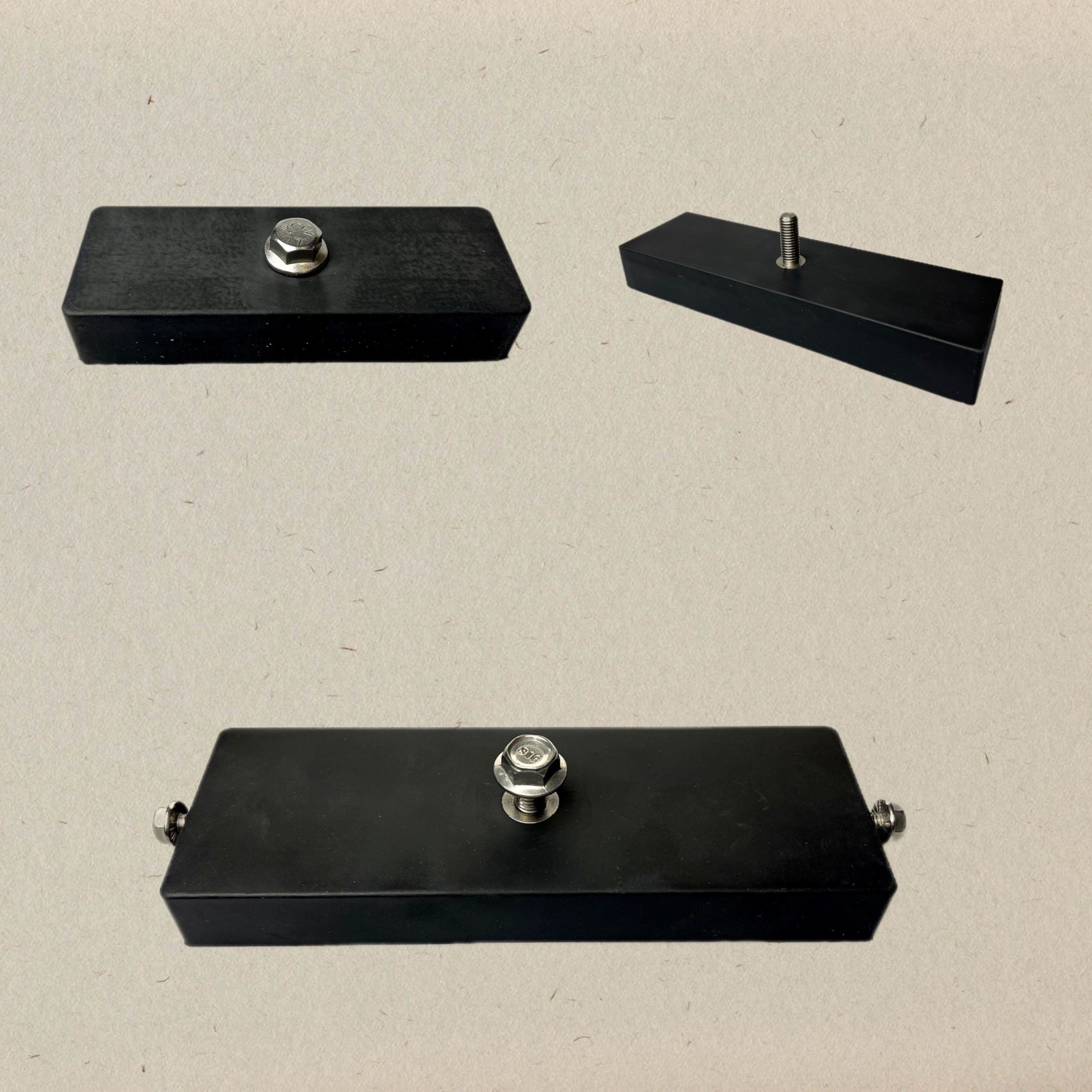

Rubber Coated Neodymium Magnet Assemblies

Rubber Coated Neodymium Magnet Assemblies
Great sheer strength compared to non-rubber-coated channel magnets

Item# Width Height Length Mounting Pull lbs
65R0017 34 mm 17 mm 95 mm M6 X 1 threaded hole 157
65R0027 61 mm 27.5 mm 202 mm M10 1.5 stud 670
65R0021 60 mm 21 mm 175 mm 2 M6X15 threaded holes with bolts 750

Standard Channel Magnets

Standard Channel Magnets
Stock# Width Height Length Mounting Pull lbs Finish Item# View Print
CH-10-R 0.890 0.25 1 0.130 center hole 5 Nickel 65CA0001
CH-10-C 0.875 0.25 1 0.125 center hole 10 Nickel 65CA0006

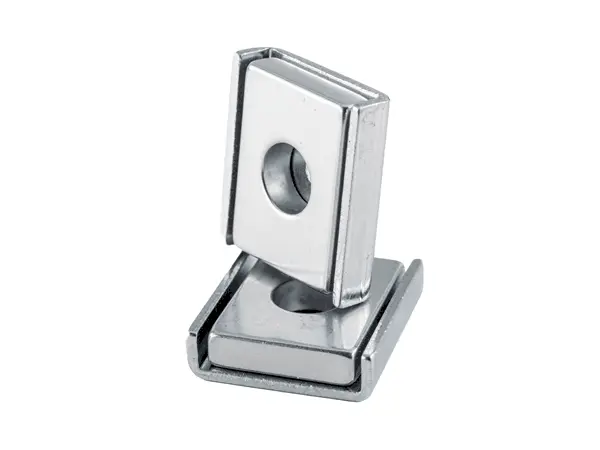

CH-10 0.88 0.25 1 0.125 center hole 30 Zinc 61ANZ002
CH-10-2 0.95 0.320 2 none 14 Nickel 65CB0005
CH-10-2 0.945 0.315 2 loop 14 Nickel 65CB0003
CH-10-2 0.960 0.315 2.63 0.170 side holes 14 Nickel 65CB0002
CH-32 1.050 0.465 2.7 0.192 side holes 25 Zinc 65CJ0001
CH-32 1.040 0.462 2.7 loop 25 Zinc 65CJ0002
CH-3 0.900 0.255 3 welded nut 22 Nickel 65CI0016
CH-35 1.5 0.455 3 0.262 slots 60 Zinc 65CK0001
CH-6 1.52 0.441 6 0.250 side holes 100 Zinc 65CM0001
CH-8 1.065 0.470 8 0.435 slots 60 Zinc 65CN0001
CH-8 1.075 0.500 7.9 0.430 slots 30 Black 61N0002
CH-12 0.710 0.200 12 0.150 side holes 10 Zinc 65CC0001
CH-12-3 1.72 0.62 12 0.250 side holes 150 Zinc 65CD0001

Contact Us

Adams is ready to be a part of your products with off-the-shelf and custom applications. Contact us to find out more.
