Product Specifications
Alnico channels are magnetized as a horseshoe with the South Pole on one side of the channel & the North Pole on the other side.
Adams’ alnico channel magnets are made of cast Alnico 5 material. All dimensions approximate and as cast with pole faces ground smooth. Other sizes are available upon request. Contact us at 800-763-4795 if you don’t see what you’re looking for in this brief listing.

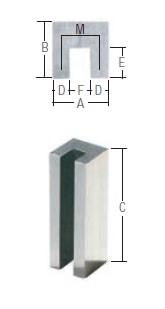

| Item# | A | B | C | D | E | F | Pull Lbs |
|---|---|---|---|---|---|---|---|
| 40E0008 | 0.625" | 0.375" | 5.000" | 0.187" | 0.125" | 0.250" | 16 |
| 40E0001 | 0.500" | 0.494" | 6.000" | 0.162" | 0.254" | 0.177" | 26 |
| 40E0004 | 0.875" | 0.750" | 6.000" | 0.250" | 0.438" | 0.375" | 45 |
| 40E0005 | 1.000" | 0.812" | 6.000" | 0.312" | 0.437" | 0.375" | 51 |
| 40E0007 | 1.250" | 1.000" | 6.000" | 0.406" | 0.500" | 0.438" | 62 |
