High Energy Magnet Strip

For projects requiring maximum strength and stability, we offer high-energy flexible magnet strips in a variety of standard and custom sizes and shapes. Available in energy levels ranging from 1.0 to 1.4, these high-strength magnets are extremely resistant to demagnetization, cracking, and chipping. They can be magnetized through the material’s thickness in a range of configurations, and adhesives or vinyl can be added upon request.

Value-Added Services

In addition to fabricating this material to your exact size and shape, we can apply adhesive or vinyl to one side upon request. We can also package them in individual bags or other package types.

Features

Adams supplies high energy flexible magnet strip in energy levels 1.0 through 1.4 in strip or die cut shapes. High energy flexible magnets can be magnetized through the thickness in several configurations. If you are not sure which method is best for your application, please ask your salesperson or click here for more details on magnetization.

Applications

Sensors
Latches
Magnetic assemblies
Holding
Arts and crafts

Strong magnets

The term “strong magnet” is used most frequently to describe rare earth magnets, which are the strongest permanent magnets available. Find out more about strong magnets.

Design and handling considerations

High energy flexible magnets can be easily fabricated to exact dimensions with small tolerances. Please enquire about your exact size requirements. This type of magnet does not chip, crack or shatter and is an inexpensive solution for light duty holding applications. The operating temperature is -15°F to 175°F.

Specifications

Adhesives listed are outdoor grade. We will help you make the best choice if you let us know to which substrate you are applying the adhesive.

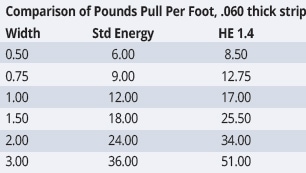

.060” High Energy 1.4 Magnet Strip in 100 Foot Rolls by Width

Width (Inches)	Item# .060 Plain	Item# .060 Adhesive	Pounds Pull Per FT	Roll Weight (lbs)
0.50	23A0046	23A0048	8.50	5
0.75	23A0049	23A0051	12.75	8
1.00	23A0052	23A0054	17.00	10
1.50	23A0055	23A0057	25.50	14
2.00	23A0058	23A0060	34.00	20

.125” High Energy 1.4 Strip in 100 Foot Rolls by Width

Width (Inches)	Item# Plain	Item# Adhesive	Pounds Pull Per FT	Roll Weight (lbs)
0.50	23C3046	23C3048	9.50	9
0.75	23C3049	23C3051	14.25	14
1.00	23C3056	23C3054	19.00	18
1.50	23C3055	23C3057	28.50	28
2.00	23C3058	23C3060	38.00	37

Interested in Learning More?

Adams is ready to be a part of your products with off-the-shelf and custom applications. Contact us to find out more.
