Neodymium Ring Magnets
Overview

Adams Magnetic Products offers high-performance neodymium ring magnets, designed for use in modern motors, generators, hydraulic cylinders, pumps, sensors, high-end loudspeakers, and high-intensity separators.

Contact Us

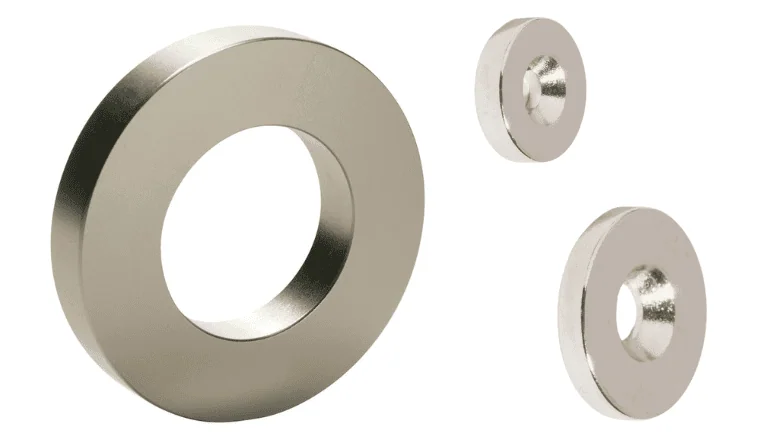

Neodymium Rings

What are Neodymium Ring Magnets?

Neodymium ring magnets are powerful rare earth magnets made from an alloy of neodymium, iron, and boron. These magnets are particularly suited for applications requiring strong magnetic fields and compact sizes.

Advantages

  • Exceptional Strength: Neodymium magnets are the strongest commercially available magnets.
  • Versatility: Suitable for a wide range of advanced applications.
  • Affordability: Cost-effective due to advancements in manufacturing processes.

Features

  • High Magnetic Properties: Strong holding and magnetic force due to their high remanence and energy product.
  • Hard and Brittle: Prone to chipping and breaking if not handled carefully.
  • Magnetization: Typically (with some exceptions) ring magnets are magnetized through the thickness.
  • Corrosion Resistance: Uncoated magnets may corrode in humid conditions.
  • Temperature Tolerance: Operating temperatures vary by material grade.

Applications

Neodymium ring magnets are used in:
  • Modern motors
  • Generators
  • Hydraulic cylinders
  • Pumps
  • Sensors
  • High-end loudspeakers
  • High-intensity separators

Specifications

Dimensions are listed in inches. All rings listed are supplied magnetized through the thickness. Additional sizes, plating options, magnetization methods and grade choices are also available upon request and may be on hand from stock.

Standard Neo Rings

Item# OD ID Thickness Grade Plating
50A0038 0.230 0.100 0.250 3017 none
50A0076 0.250 0.060 0.060 3512 nickel
50A0036 0.365 0.200 0.250 3512 nickel
50A0073 0.375 0.136 0.100 3514 nickel
50A0037 0.500 0.136 0.060 3512 none
50A0071 0.875 0.275 0.200 3512 nickel
50A0085 0.866 0.354 0.393 3514 nickel

Countersunk Neodymium Ring Magnets

Countersunk Neodymium Ring Magnets
Item OD ID Thickness Screw No. Grade Polarity Pounds Pull Strike Plate OD
50A0668 0.375 0.125 0.125 4 4512 N 3.8 69S0064 0.500
50A0225 0.375 0.136 0.125 4 3512 N 3 69S0064 0.500
50A0229 0.375 0.136 0.125 4 3512 S 3 69S0064 0.500
50A0081 0.400 0.125 0.125 4 3514 N 3.2 69S0064 0.500
50A0226 0.500 0.136 0.125 4 3512 N 4.5 69S0065 0.625
65P0038 0.500 0.136 0.125 4 4212 N 5.4 69S0065 0.625
65P0027 0.625 0.170 0.125 8 4212 N 7.1 69S0065 0.625
50A0227 0.750 0.194 0.125 8 3512 N 7.2 69S0066 0.875
50Z0086 1.000 0.221 0.1875 10 4212 N 16.9
