Ceramic Ring Magnets
Overview

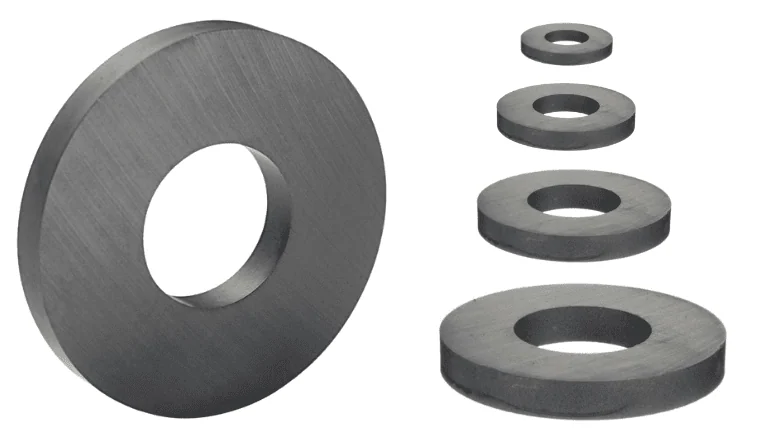

Ceramic (hard ferrite) ring magnets are among the most economical magnets available, and are commonly used in manufacturing, craft and hobby applications.
Features
- Ceramic rings offer economical magnet power for price sensitive applications when you need low cost, good holding strength, and great value.
- Ceramic ring magnets are a dark charcoal gray in color and do not appear metallic.
- Ceramic magnets are not suited for high-temperature applications (over 250° C)
- We stock ceramic ring magnets in Grade 5, magnetized through the thickness. Grade 8 is also available by request; that is generally used in more demanding technical applications.
- For a comparison of Ceramic Grades 5 & 8, please see our Chart of Properties.
Specifications
OD | ID | Thickness | Item# |
---|---|---|---|
1.250" | 0.375" | 0.187" | 30A0006 |
1.250" | 0.709" | 0.200" | 30A0007 |
1.750" | 0.866" | 0.275" | 30A0009 |
2.100" | 0.800" | 0.276" | 30A0022 |
2.375" | 1.000" | 0.280" | 30A0010 |
2.820" | 1.250" | 0.330" | 30A0014 |
3.375" | 1.280" | 0.425" | 30A0020 |
4.540" | 1.750" | 0.400" | 30A0021 |
Contact Us
Adams is ready to be a part of your products with off-the-shelf and custom applications. Contact us to find out more.
