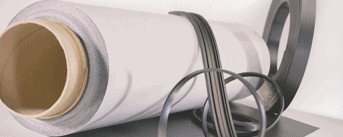

Flexible Sheet & Strip Magnets

Standard Flexible Magnetic Sheet

Adams magnetic sheet uses multi-pole magnetization pattern for maximum holding power of up to 144 pounds per square foot. Standard grade materials are significantly stronger on one side and can have adhesives and vinyl applied to the weak side. Double magnetization is available by custom order, which will give both sides similar pull strength. These sheets can be cut or die-cut to it virtually any size and shape. A range of standard and custom thicknesses, colors, and adhesives are also available.

Flexible magnetic sheets are ideal for:

• Marketing decals
• Signage
• Display boards
• Arts and crafts

Printable Wide-Format Magnet Sheet

Our printable wide-format magnetic sheets are available in widths ranging from 40-60 inches, making them perfect for wide-format print media applications. Laminate options include matte white waterproof PVC, white dry erase, and other substrates upon request. An all-purpose acrylic adhesive can also be added.

Our printable wide-format magnet sheets see frequent use in applications such as:

• Large-format and interchangeable graphics
• Billboards
• Magnet wall systems
• Control charts
• Printed premiums

Recyclable Print Magnet Sheet

GreenMAG™ print magnet sheets are fabricated by applying a durable printable coating directly to the sheet, making them 100% recyclable and eliminating the need for a laminated printing surface. This prevents delamination issues and facilitates easier, cleaner cutting due to the absence of an adhesive. Our recyclable print magnet sheets are available in standard and custom configurations and roll sizes.

Recyclable print magnet sheets have applications such as:

• Indoor and outdoor displays
• Menu boards
• Interchangeable graphics
• Vehicle signs

ClingMAG™ Magnet Sheet with Micro-Suction

Our thin, lightweight ClingMAG™ magnet sheets incorporate a micro-suction silicon layer that reduces magnet particle migration while increasing the sheet’s holding force to over 220 pounds per square foot. Featuring matte white vinyl print surfaces, these magnet sheets are compatible with both UV-curable and screen print ink sets. ClingMAG™ magnet sheets are best suited for use with smooth steel surfaces such as steel doors, elevators, and vehicles.

Magnetic Labels

We offer a range of magnetic labels that can be conveniently attached and removed from various magnetically receptive surfaces. Options include pre-cut and C-channel cardholders, write-on/wipe-off labels, yellow labels, inkjet-printable magnets, and document pockets.

Applications for magnetic labels include:

• Warehouse and store labeling
• Price tag holders
• Nameplates
• Control charts

Flexible Matched Pole Strip

When used with A/B rolls, our flexible matched pole strips allow the direction of alignment to be mixed and matched without encountering repelling forces. We offer the following two options:

• EdgeMAG™, a thin, flexible strip that provides side-to-side and front-to-back holding power
• MatchMAG™, a matched pole strip designed for face-to-face applications

These flexible matched pole strip solutions are used in:

• Graphic panels
• Multi-piece photos and graphics
• Puzzles
• Package closures

Adhesives

Selecting the right adhesive is critical to product function, and is dependent on the type of material you apply our magnets to, and under what conditions they will be used.  We have several options to work for indoor applications, outdoor applications, or when more tack is required.  We can supply our magnets with almost any type of adhesive available, including foam and permanent or removable adhesive.  To view and download our standard adhesive specifications, click here.

Acrylic Adhesives

Adams magnetic sheet uses APAA (All Purpose Acrylic Adhesive) which is good for most paper, cardboard, plastic, painted surfaces and most clean, dry metal surfaces. Note: Acrylic adhesives normally require 12 to 24 hours to meet maximum bond strength. The hold in place tack is immediate, but full hold strength requires chemical cure time, like with most other adhesives.

Benefits of Using Flexible Magnets

The easy manipulation of flexible magnets permits design innovations and automated manufacturing techniques not possible with rigid or brittle materials. Flexible magnet materials can be bent, twisted, coiled, slit, punched, and otherwise machined into almost any shape without loss of magnetic energy.

Adams Magnetic Products’ Fabrication Capabilities

From off-the-shelf stock products to completely customized configurations, we are equipped to provide personalized magnet solutions that match your application’s exact needs. We offer the following customization options:

• Foam, rubber, acrylic, and double-faced adhesives
• Wide range of thicknesses, lengths, and widths
• Cutting, scoring, and die-cutting
• Paper, vinyl, and polypropylene laminates
• Magnetization options:

○  Unmagnetized

○  Magnetized on both sides

○  Custom magnetization such as matched pole

○  Custom pole spacing

• Custom packaging
• Splice-free rolls upon request

After determining your desired magnet size and total product quantity, our easy-to-use sheet size calculator can calculate the number of magnets that can be obtained from a single roll and the estimated weight of your final order.

Flexible Sheet & Strip Magnets from Adams Magnetic Products

As a full-service manufacturer, Adams Magnetic Products is qualified and equipped to provide support with everything from magnet design and testing to product packaging. Offering both ready-to-ship products and customized solutions, we work closely with clients to satisfy even the most complex design and magnetization requests.

To learn more about our flexible magnet products and capabilities, check out the links below:

• Flexible Magnet Resource Library
• Flexible Magnet Fabrication Page
• Sheet Size Calculator

To discuss how our magnet solutions can benefit your application, please submit our request form.

Our Custom Flexible Sheet & Strip Magnet Capabilities/Specs

At Adams Magnetic Products, our in-depth industry experience and onsite manufacturing shop allow us to create flexible magnets in virtually any form requested. Fabrication options and product capabilities include:

Widths

• Standard Magnetic Strip: 0.25″ – 3″
• High Energy Flexible Magnet Strip: 0.5″ – 2″
• Flexible Magnetic Sheet: 50 ft 2 – 200 ft 2
• Printable Wide Format Magnet Sheet: 40″ – 60″
• Magnetic Labels: 1″ – 100′
• Matched Pole Strip: 0.060″ – 100′
• Magnet Receptive: 0.5″ – 1″

Pounds Pull Per Foot or Square Foot

• Standard Magnetic Strip: 3 – 45 per foot
• High Energy Flexible Magnet Strip: 8.5 – 38 per foot
• Flexible Magnetic Sheet: 30-144 per square foot

Roll Weights

• Standard Magnetic Strip: 3 – 59 lbs.
• Standard 24” Wide Flexible Magnetic Sheet: 15 – 126 lbs.
• Wide Format Magnet Sheet: 75 – 135 lbs.

Thickness

• Standard Magnetic Strip: 0.030″ – 0.187″
• High Energy Flexible Magnet Strip: 0.060″ – 0.125″
• Flexible Magnetic Sheet: 0.015″ – 0.060″
• Printable Wide Format Magnet Sheet: 0.015″ – 0.030″

Temperature Tolerances

• Standard Magnetic Strip: -15°F to 160°F
• High Energy Flexible Magnet Strip: -15°F to 175°F
• Flexible Magnetic Sheet: Avoid extreme heat or cold
• Printable Wide Format Magnet Sheet: -15°F to 170°F
• Magnetic Labels: N/A
• Matched Pole Strip: N/A
• Magnet Receptive: N/A [2]

Tolerances

	Thickness	Width	Custom Lengths
Magnet Strips	+/- 0.003″	+/- 0.030″	+/-0.060″ or 1%, whichever is greater
Magnet Sheets	+/- 0.003″	+/- 0.060″	+/-0.125″ or 1%, whichever is greater
